    ASTM A53 PN-EN 10208 ERW Steel Tube 0.1mm - 70mm Wall Thickness For Combustible Fluid

    Ask Lasest Price
    Brand Name : Best
    Model Number : 1/2'' -48''
    Certification : API /CE / ISO /TUV
    Price : 450 USD/TON
    Payment Terms : L/C, T/T
    Supply Ability : 100000 Ton/Year
    Delivery Time : Shipped in 25 days after payment
    • Product Details
    • Company Profile

    ASTM A53 PN-EN 10208 ERW Steel Tube 0.1mm - 70mm Wall Thickness For Combustible Fluid

    Production Information : PN-EN 10208-1,2 Steel pipes for pipelines for combustible fluids
    The pipes are used for transporting gas, oil, combustible fluids with specific pressure in the mining, chemical, and power engineering industry.

    Normy


    The products described above are determined by:


    - Polish Norms - PN-H-74245, PN-H-74242, PN-H-86020, PN-H-74256, BN-67/0648-02, BN-66/0648-06, PN-H-74241, PN-H-74240, PN-H-74219, PN-H-74252, PN-H-74255, BN 54/0463-04, PN-H-74243, PN-H-74200, PN-H-74244, PN-H-74244, PN-H-74248, PN-H-74209, PN-H-74207, PN-H-74250, PN-H-74251.


    - Euronorms - PN-EN 10216-1, PN-EN 10216-2, PN-EN 10216-4 +A1, PN-EN 10216-5, PN-EN 10296-1, PN-EN 10296-2, PN-EN 10297-1, PN-EN 10297-2, PN-EN 10301, PN-EN 10305-1, PN-EN 10305-2, PN-EN 10305-3, PN-EN 10305-4, PN-EN 10305-5, PN-EN 10312.


    Steel tubes
    Seamless hot rolled tubes

    Range of available outside diameters:

    fi 0,7mm - fi 2000mm

    Wall thickness range:

    0,1mm - 70mm Lenghts <18000mm

    Seamless cold rolled tubes
    Cold-drawn seamless tubes
    Precision seamless tubes
    Thick-walled seamless pipes
    Construction welded tubes
    Welded tubes for installation applications
    Duct seamed tubes
    Welded tubes for gas installation
    Longitudinally welded tubes
    Grounded and polished tubes
    Hot-rolled sleeves

    Standard descriptionSteel pipes for pipelines for combustible fluids. Pipes of requirement class A.
    ManufacturingManufactured as seamless pipes and as welded pipes.
    Details:
    Steel grades usedRequirement class A
    L210GA, L235GA, L245GA, L290GA, L360GA
    Dimensions and tolerancesFor the outside diameter of welded pipes
    For D<60mm +/-0,75% or +/- 0,5 mm depending on which value is greater.
    For 60<D<610 +/-0,75% or +/- 0,5 mm depending on which value is greater.
    For 610<D<1410 +/-0,5% or +/- 4,0 mm depending on which value is greater.
    For D>1410 to be negotiated
    TightnessPipes should be subject to water testing (7Mpa) or electromagnetic testing.
    Straightness< 0,0015 of pipe length (below 3 mm per every meter of pipe length)
    TestsDetails:

    Pipe types and the manufacturing process


    Pipe typeOriginal materialPlastic forming of the pipe1)Thermal processing stateThermal processing symbol
    Seamless (S)Ingot or blockHot rollingNormalization or normalization plastic formingN
    Heat treatmentQ
    Hot rolling and cold finishingNormalizationN
    Heat treatmentQ
    High frequency welding (HFW)Normalized rolled stripsCold formingNormalization of the weld areaN
    Thermomechanically rolled stripsHeat treated weld areaM
    Hot rolled strips or normalized rolled stripsCold forming and reduction with hot tensioning at controlled temperature so as to achieve a normalized stateNormalization (whole pipe)N
    -N
    Submerged arc welding (SAW) -longitudinal (SAWL) -spiral (SAWH) or combined welding (COW) -longitudinal (COWL) –spiral (COWH_Normalized or normalized rolled sheets or stripsCold forming-N
    Thermomechanically rolled sheets or strips
    Rolled sheets or stripsNormalization plastic forming-M
    Normalized or normalized rolled sheets or stripsN

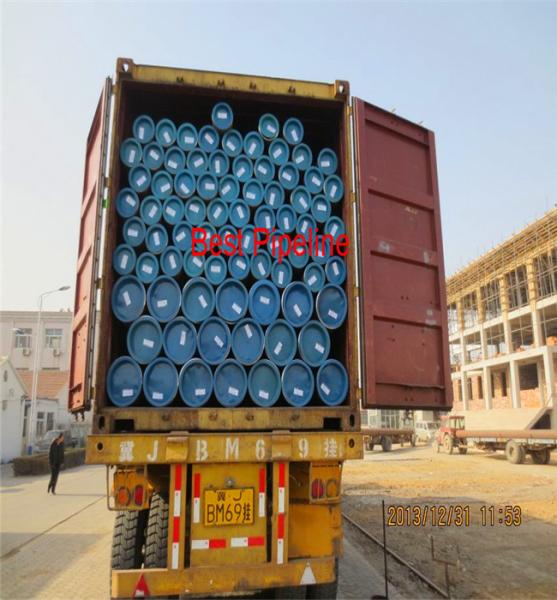

    Product Show
